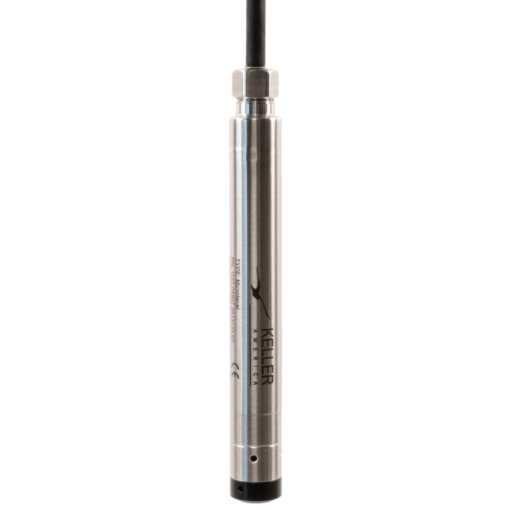

Keller MicroLevel Micro-Bore Submersible Level Transmitter

Description

The Microlevel combines the high accuracy of the Acculevel with a class-leading housing diameter of only 0.63″. It incorporates Keller’s proven microprocessor-controlled signal conditioning to provide outstanding accuracy over temperature. It provides dual outputs, one 4-20mA analog and one digital RS485. The RS485 connection allows users to retrieve both level and temperature data, interface with a PC, and rescale the analog output from 10% to 110% of the basic range (converter cable and Keller software required). The Microlevel submersible level transmitter also includes guaranteed lightning protection. This internal circuit is included at no additional cost and provides a lifetime warranty against damage from voltage surge.

Features & Benefits

• Pressure Ranges: Infinite between 0-3 and 0-900ftWC
• Accuracy, Static at 25°C
  • Standard: 0.1% FS
  • Optional:0.05% FS
• Accuracy, Total Error Band
  • Standard: 0.25% FS TEB
  • Optional: 0.1% FS TEB
• Storage Temperature: -10 to 60°C
• Operating Temperature: 0 to 50°C
