Description

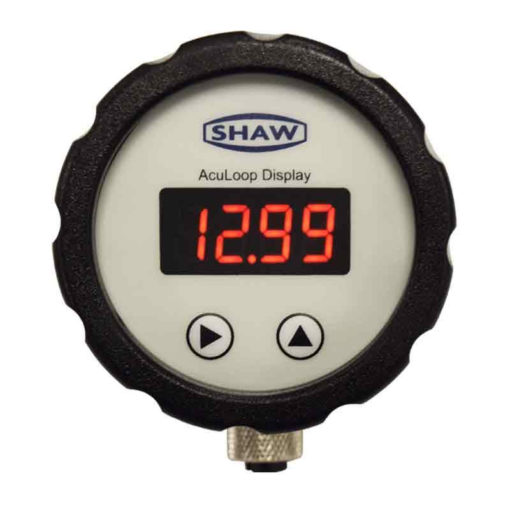

Model AcuLoop plug in display module: 4-20 mA, loop powered and suitable for use with the new AcuDew high performance dewpoint transmitter.
Easy to install and lightweight, this large, four digit, LED, plug in display is easily supported on the body of the AcuDew dewpoint transmitter. Whether the dewpoint transmitter is installed horizontally or vertically, the AcuLoop plug in display can be rotated for optimum viewing. Orientation is adjustable to 210 degrees on its stem and 360 degrees (at four x 90 degrees increments) on its axis.
The AcuLoop connects via the robust M12 connector of the AcuDew dewpoint transmitter, which is loop powered through the AcuLoop display module.
The 4-20 mA span is fully programmable to correspond with any AcuDew dewpoint range and can be configured using the two button layout on the display. When paired with the AcuDew, various dewpoint ranges are available covering an overall range from -120 °C to +20 °C (-148 °F to +68 °F) dewpoint. The output units can be displayed in °C dewpoint, °F dewpoint, ppm(v) or ppb(v).
Self-contained, robust and reliable. With a weatherproof classification of IP65, this display is ideal for use in a wide range of industrial environments where local indication is required.
