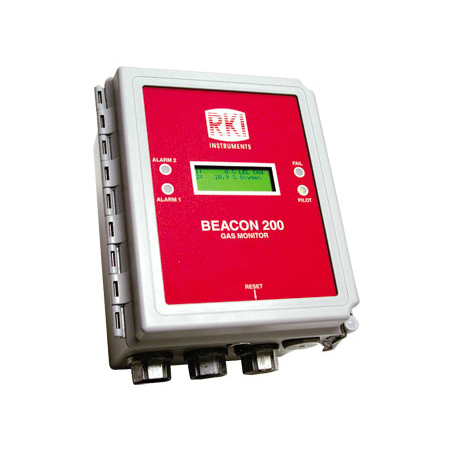

Beacon 200 Two Channel Wall Mount Controller

The Beacon 200 is a powerful, low cost fixed system controller for two points of gas detection. It is microprocessor controlled, versatile, simple to install and operate, and priced to be the industry’s most economical two point controller. It is capable of connecting directly to RKI sensors for LEL level combustibles, Oxygen, Hydrogen Sulfide, or Carbon Monoxide. Sensors can be mounted directly at the Beacon 200 housing, or can be wired remotely from the controller. The digital display has backlighting and simultaneous readout of the gas type and concentration.

The Beacon 200’s housing is rated NEMA 4X for corrosion resistance and a weather tight seal, and complies with lock out / tag out standards. An external reset switch allows the alarm to be silenced from outside of the controller housing. The Beaconª 200 comes complete with a wall mounting kit for easy installation.

Application

• Petrochemical plants
• Refineries
• Water & wastewater treatment plants
• Pulp & paper mills
• Gas, telephone, & electric utilities
• Parking garages
• Manufacturing facilities
• Steel
• Automotive
• HVAC

Features & Benefits

• Simultaneous readout on 2 channels
• Two alarm levels per channel
• Discrete and common relays
• NEMA 4X enclosure
• 4-20 mA outputs
• Proven, long-life sensors for a wide variety of gases
• Accepts any 4-20 mA transmitter input (24 VDC)
• Easy to install, operate and expand
