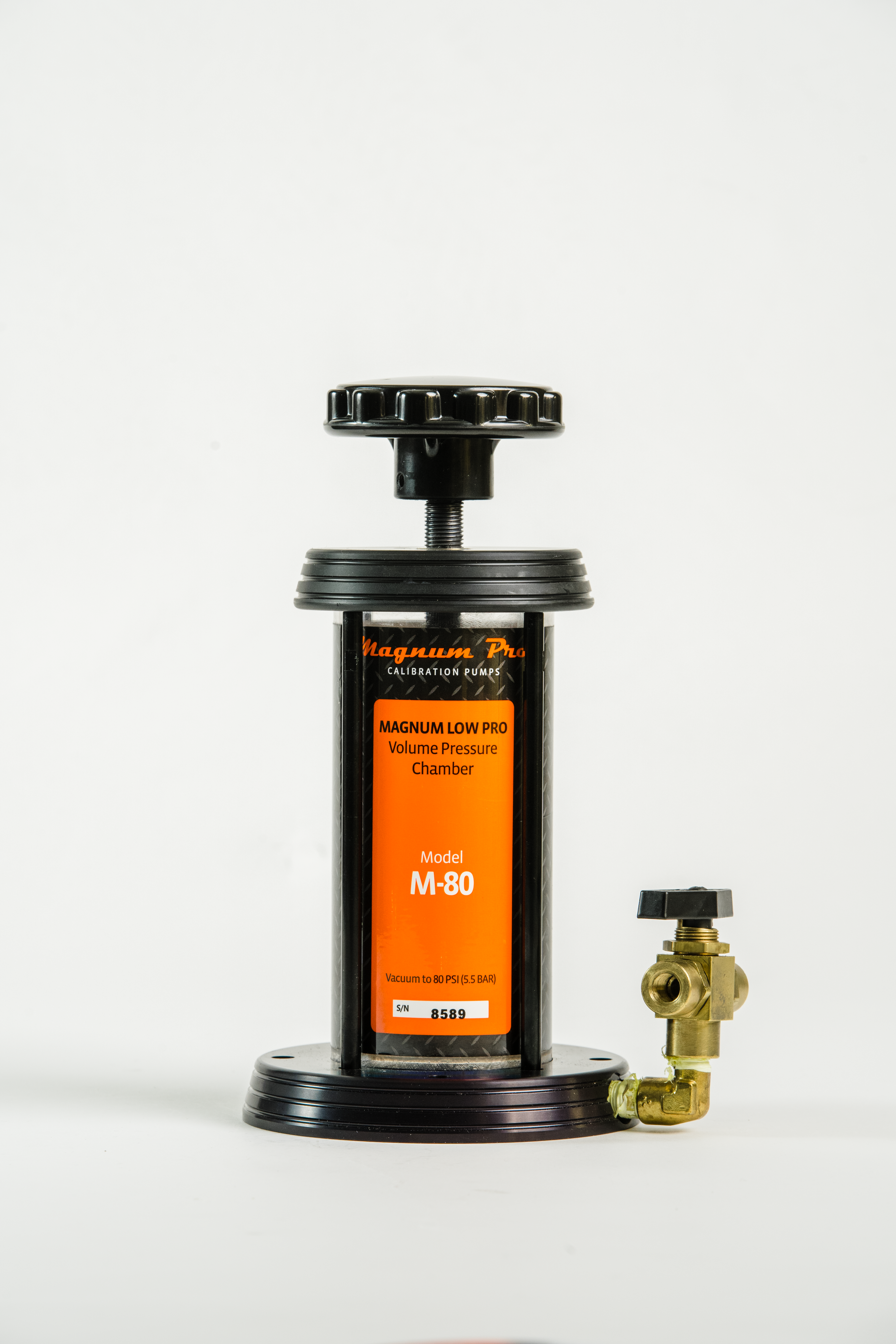

Magnum Low Pro Volume Pressure Chamber M-80

The M-80 Low Volume Pressure Chamber can span a range of near absolute vacuum to low pressures and an extremely high resolution. It is ideal for shop or field use, as it is bench mountable, but relatively lightweight. A rugged outer housing and dual O-rings ensures zero leakage. The M-80 comes with a 2 year warranty and is compatible with all gauges and calibrators.

Features & Benefits

  • Resolution of 0.0001%
  • Range: 30 inHg to 80 psi
  • Connections: (2) 1/8″ FNPT ports (gauge & process)
  • Excellent stability for low pressure calibrations
  • Patented optional power drive with rechargeable lithium batteries allow users to rapidly span the range without manual operation
low pressure, pressure, chamber, volume

Description

The M-80 Low Volume Pressure Chamber can span a range of near absolute vacuum to low pressures and an extremely high resolution. It is ideal for shop or field use, as it is bench mountable, but relatively lightweight. A rugged outer housing and dual O-rings ensures zero leakage. The M-80 comes with a 2 year warranty and is compatible with all gauges and calibrators.

Features & Benefits

  • Resolution of 0.0001%
  • Range: 30 inHg to 80 psi
  • Connections: (2) 1/8″ FNPT ports (gauge & process)
  • Excellent stability for low pressure calibrations
  • Patented optional power drive with rechargeable lithium batteries allow users to rapidly span the range without manual operation
