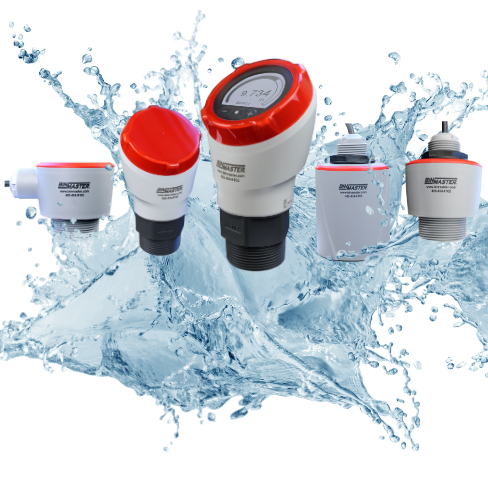

CNCR Series 80GHz Compact Non-Contact Radar for Liquids

The CNCR series of compact non-contact radar level sensors uses a 80GHz narrow beam for accurate measurement of simple and aggressive liquids in storage and processing tanks. The radar level technology offers reliable measurements in conditions such as condensation, turbulence, and foam. The narrow beam allows the use of the sensor in confined vessels or standpipes, and can be aimed to avoid pipes or structures that could interfere with the signal. The CNCR series also has the ability to measure right up to the face of the sensor.

CNCR sensors have a low cost of ownership, as they do not require maintenance. Setup is also simplified as it does not require the vessel to be emptied prior to installation. Settings can be changed with a Bluetooth app with a smartphone, tablet, or PC and measurement data can be easily sent to BinView software, a local display, or a PLC.

All CNCR sensors have general purpose FM/CSA/CE certifications. The CNCR-100 Cabled Series install using a polyurethane pigtail connection cable which is available in 16, 32, or 82 ft. lengths and enclosures are rated to IP66/IP68, which provides chemical, abrasion, flame resistance, and UV stability. The CNCR-200 Threaded NPT Series uses a 1/2″ NPT for connection. The enclosures are rated IP66/IP67, Type 4X providing protection from dust and water damage.

CNCR-110

  • Measuring Range: 26 ft. (8M)
  • Output: 2-wire 4-20mA (12-35 VDC)
  • Accuracy: +/-0.2″ (5mm)

CNCR-120 & CNCR-130

  • Measuring Range: 49 ft. (15M)
  • Output: 2-wire 4-20mA (12-35 VDC) or 4-wire Modbus (8-30 VDC)
  • Accuracy: +/-0.08″ (2mm)
  • Cable outlet on the top of the unit for the CNCR-120
  • Cable outlet on the side of the unit for the CNCR-130

CNCR-190

  • Measuring Range: 98 ft. (30M)
  • Output: 2-wire 4-20mA (12-35 VDC) or 4-wire Modbus (8-30 VDC)
  • Accuracy: +/-0.08″ (2mm)

CNCR-210

  • Measuring Range: 26 ft. (8M)
  • Output: 2-wire 4-20mA (12-35 VDC)
  • Accuracy: +/-0.2″ (5mm)

CNCR-220

  • Measuring Range: 49 ft. (15M)
  • Output: 2-wire 4-20mA (12-35 VDC)
  • Accuracy: +/-0.2″ (5mm)

CNCR-230

  • Measuring Range: 49 ft. (15M)
  • Output: 2-wire 4-20mA (12-35 VDC)
  • Accuracy: +/-0.2″ (5mm)
  • LED display
