Description

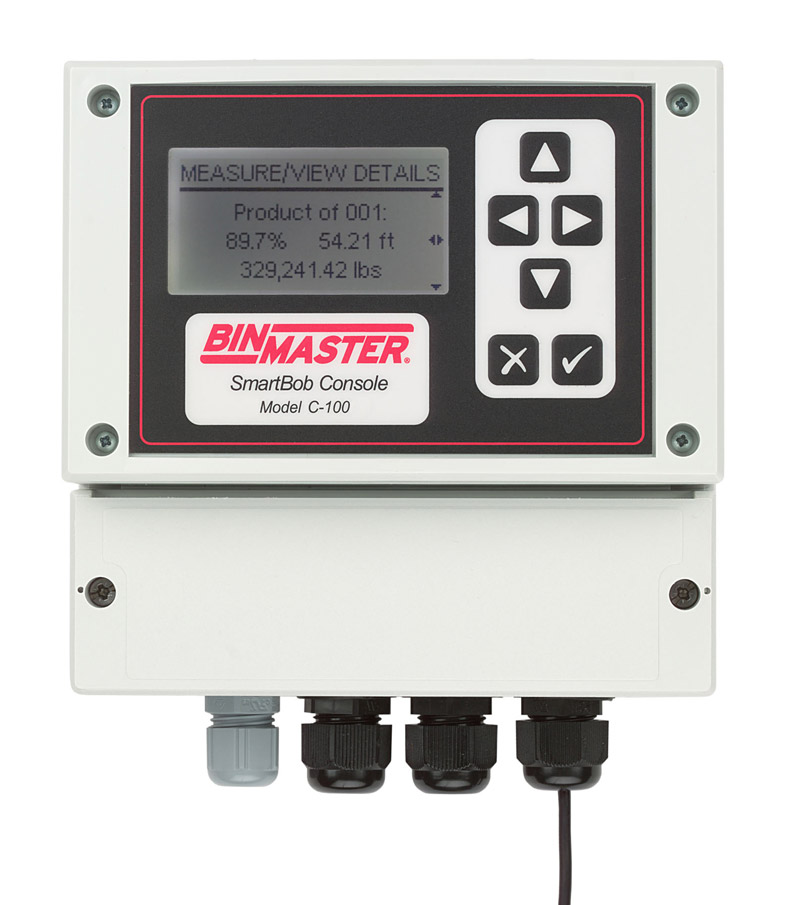

The C-100 control console is an easy and affordable solution to access level measurement from multiple sensors. One control console has the capability to display data for up to 120 sensors. It can be used as a stand-alone device or integrated into a network that is using BinView or Binventory software. The C-100 can be used with SmartBob sensors, NCR and GWR radar sensors, and SmartSonic ultrasonic level sensors depending on the model purchased. The C-100 has one 4-20mA output and remote start contact to inferface one sensor to a PLC/DCS system.
Features & Benefits
- NEMA 4X enclosure resistant to windblown dust and rain
- 6 button, membrane style external keypad for user control and operation
- Back-lit LCD graphics display accesses current vessel data instantly
- Intuitive push-button interface makes it easy to configure the unit and retrieve data
- Option to display height of material or distance to material (headroom)
- Measurement units in feet or cubic feet, US gallons or bushels, and tons or metric tons
- C-100 indicates status of the SmartBob sensor during the measurement cycle
