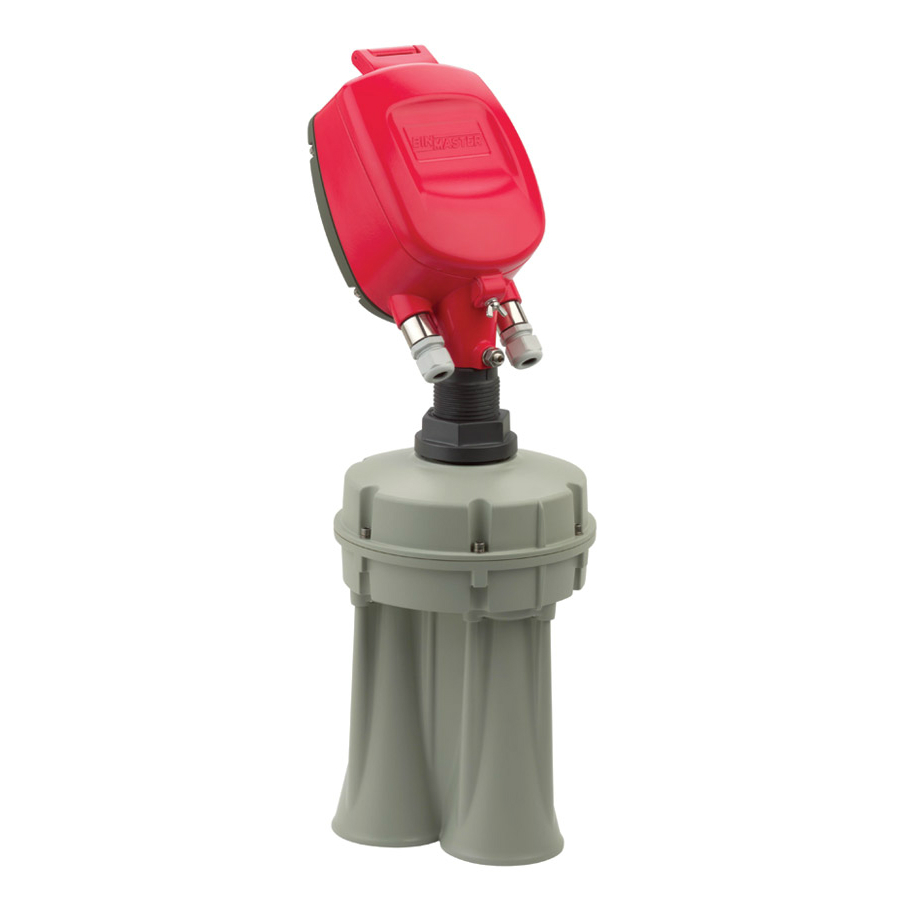

3D Level Scanner

The BinMaster 3DLevelScanner provide continuous, non-contact level measurement using dust penetrating technology to provide unsurpassed bin volume accuracy. Unlike single point devices, it works by measuring multiple points within the bin. This advanced acoustics-based technology is proven to perform in powders and bulk solids contained in tanks, silos, domes, warehouses, open bins and piles. Its unique 3D mapping capabilities provide a visual representation of bin contents, detecting irregular material surfaces, cone up or down conditions, as well as sidewall buildup. It is self-cleaning, requires minimal maintenance and features a variety of extensions and configurations to allow it to be used in a wide range of challenging applications.

Features & Benefits

  • Continuous and non-contact measurement
  • Measures uneven powder or solid material surfaces
  • Detects cone up, cone down and sidewall buildup
  • Provides minimum, maximum and average distances
  • Performs in extreme levels of dust
  • Calculates highly accurate bin volume
  • Communications include 4-20/HART, Modbus RTU, TCP/IP and RS-485
  • Measuring range up to 200 feet
  • Self-cleaning with minimal maintenance
BinMaster, Bin Master, Bindicator, Bin, Tank, Level

Description

The BinMaster 3DLevelScanner provide continuous, non-contact level measurement using dust penetrating technology to provide unsurpassed bin volume accuracy. Unlike single point devices, it works by measuring multiple points within the bin. This advanced acoustics-based technology is proven to perform in powders and bulk solids contained in tanks, silos, domes, warehouses, open bins and piles. Its unique 3D mapping capabilities provide a visual representation of bin contents, detecting irregular material surfaces, cone up or down conditions, as well as sidewall buildup. It is self-cleaning, requires minimal maintenance and features a variety of extensions and configurations to allow it to be used in a wide range of challenging applications.

Features & Benefits

  • Continuous and non-contact measurement
  • Measures uneven powder or solid material surfaces
  • Detects cone up, cone down and sidewall buildup
  • Provides minimum, maximum and average distances
  • Performs in extreme levels of dust
  • Calculates highly accurate bin volume
  • Communications include 4-20/HART, Modbus RTU, TCP/IP and RS-485
  • Measuring range up to 200 feet
  • Self-cleaning with minimal maintenance
