Description

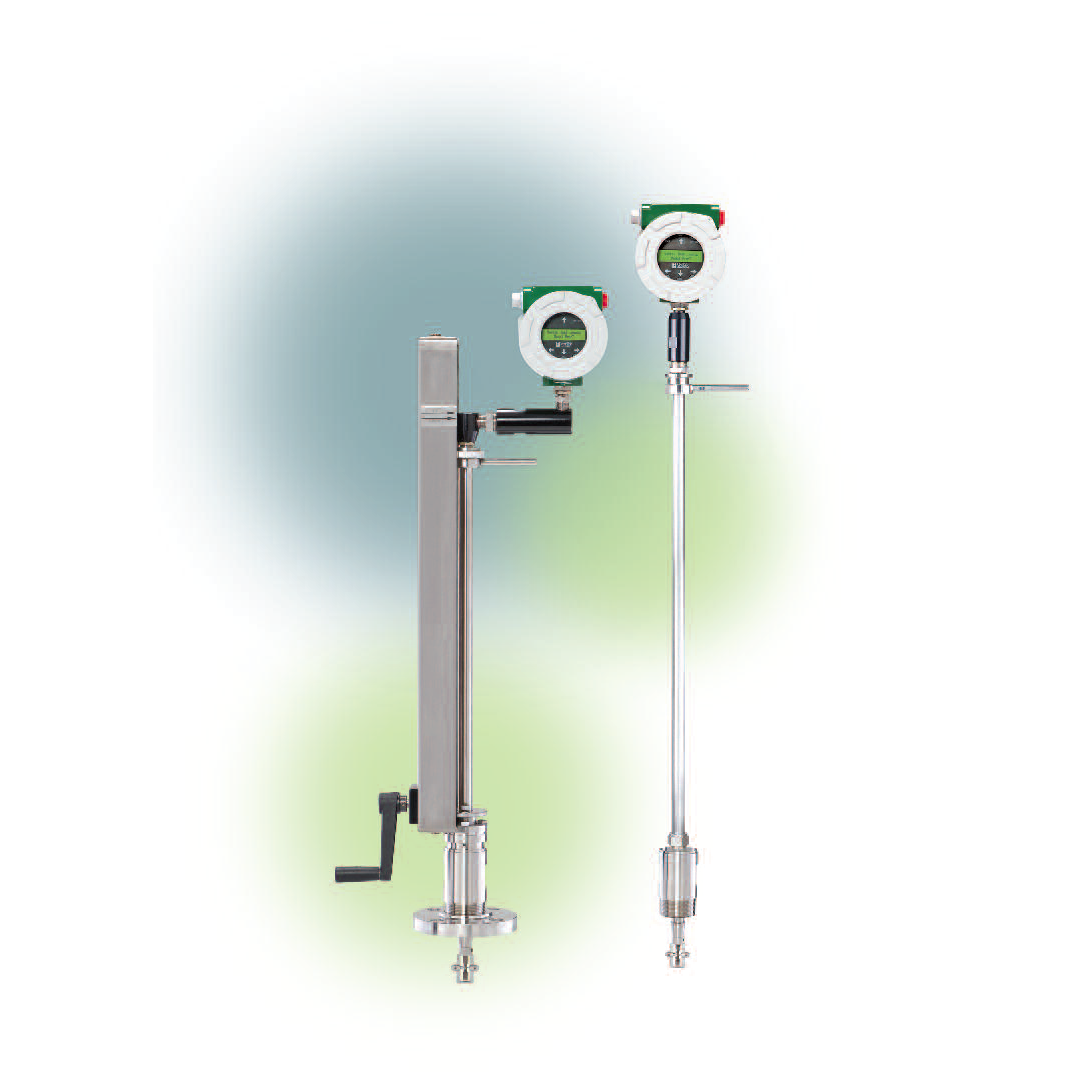

The Turbo Pro™ Model Pro-T™ VTP insertion turbine flow meter offers you full computer functionality in a compact field device. This multivariable flowmeter incorporates temperature and pressure sensors to provide an instantaneous reading of the compensated mass flow rate of gases, liquids and steam. In addition to outputs for totalized mass and alarm settings, the field-configurable electronics deliver up to three analog 4-20mA outputs of five process measurements, including volumetric flow rate, mass flow rate, pressure, temperature and density.
Features & Benefits
- Volumetric or mass flow monitoring of most liquids, gases, and steam
- Multivariable meter delivers mass flow, temperature, pressure, and density readings from a single installed device and reduces initial costs, installation cost and cost of ownership over the lifetime of the instrument
- Compensated mass flow reading of liquids, gases, and steam
- Easy to install and commission – Hot tappable, process shut down not required for installation
- High accuracy with rangeability up to 17:1
- Handles temperatures from -450 deg F to 850 deg F
- Handles pressures up to 1500 psig
- Insertion style mounting permits installation in any pipe 2 inches and greater
- Field configurable ranges, outputs and displays
- Remote electronics option available for use in harsh environments or locations with limited access
- 4-20mA loop-powered Mass Meter design saves on energy costs
- HART protocol communications (standard)
- Modbus communications available
