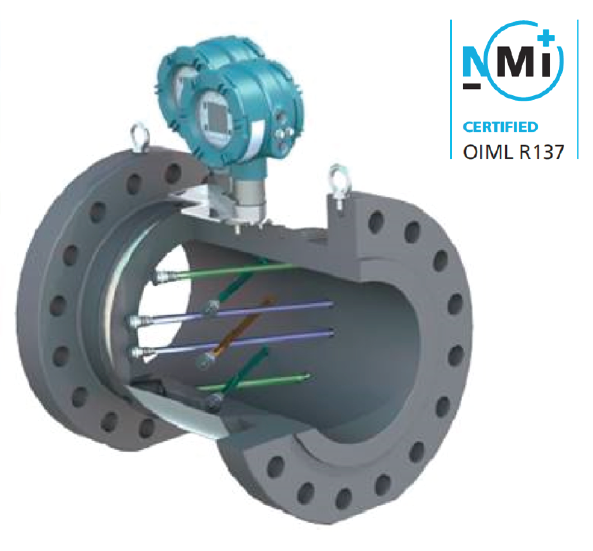

Transus Ultrasonic Gas UIM-4F Duo Series Flowmeter

The UIM-4F Duo is comprised of two fully independent systems. Main measurement is handled by the four path UIM-4F component and the redundant three path UIM-3 uses enhanced diagnostics to allow the user to perform condition based maintenance. By using three path secondary measurement, which is less susceptible to slight profile changes, the UIM-4F Duo provides the diagnostics needed to detect potential issues.

Features & Benefits

  • 8″ to 30″ Line Sizes
  • Class 300, 600, and 900
  • Pressure Ratings up to 2250 PSIG
  • -30 to 80°C (-22 to 176°F) Process Temperature
  • Two Fully Independent Systems
  • Three Path or Four Path Secondary Measurement
  • AGA-9 Compliant
  • Typical Uncertainty 1% Factory Calibration, 0.5% Flow Calibration
  • 0.1% Repeatability
  • 100:1 Turndown Ratio (Pipe Size Dependent)
  • User Interface 128×128 Dot Matrix LC Display, 4 keys
  • MODBUS (RS485 and USB) Communication Protocols
  • IP66, NEMA 4X Transmitter Enclosures
Transus, Gas, Custody, Ultrasonic, Flow, GE, GE Sensing, GE Panametrics, Panametric, GE Infrastructure, XGM, XGF, GF
Product Downloads

List of Brochures

Categories: , , , ,

Description

The UIM-4F Duo is comprised of two fully independent systems. Main measurement is handled by the four path UIM-4F component and the redundant three path UIM-3 uses enhanced diagnostics to allow the user to perform condition based maintenance. By using three path secondary measurement, which is less susceptible to slight profile changes, the UIM-4F Duo provides the diagnostics needed to detect potential issues.

Features & Benefits

  • 8″ to 30″ Line Sizes
  • Class 300, 600, and 900
  • Pressure Ratings up to 2250 PSIG
  • -30 to 80°C (-22 to 176°F) Process Temperature
  • Two Fully Independent Systems
  • Three Path or Four Path Secondary Measurement
  • AGA-9 Compliant
  • Typical Uncertainty 1% Factory Calibration, 0.5% Flow Calibration
  • 0.1% Repeatability
  • 100:1 Turndown Ratio (Pipe Size Dependent)
  • User Interface 128×128 Dot Matrix LC Display, 4 keys
  • MODBUS (RS485 and USB) Communication Protocols
  • IP66, NEMA 4X Transmitter Enclosures
