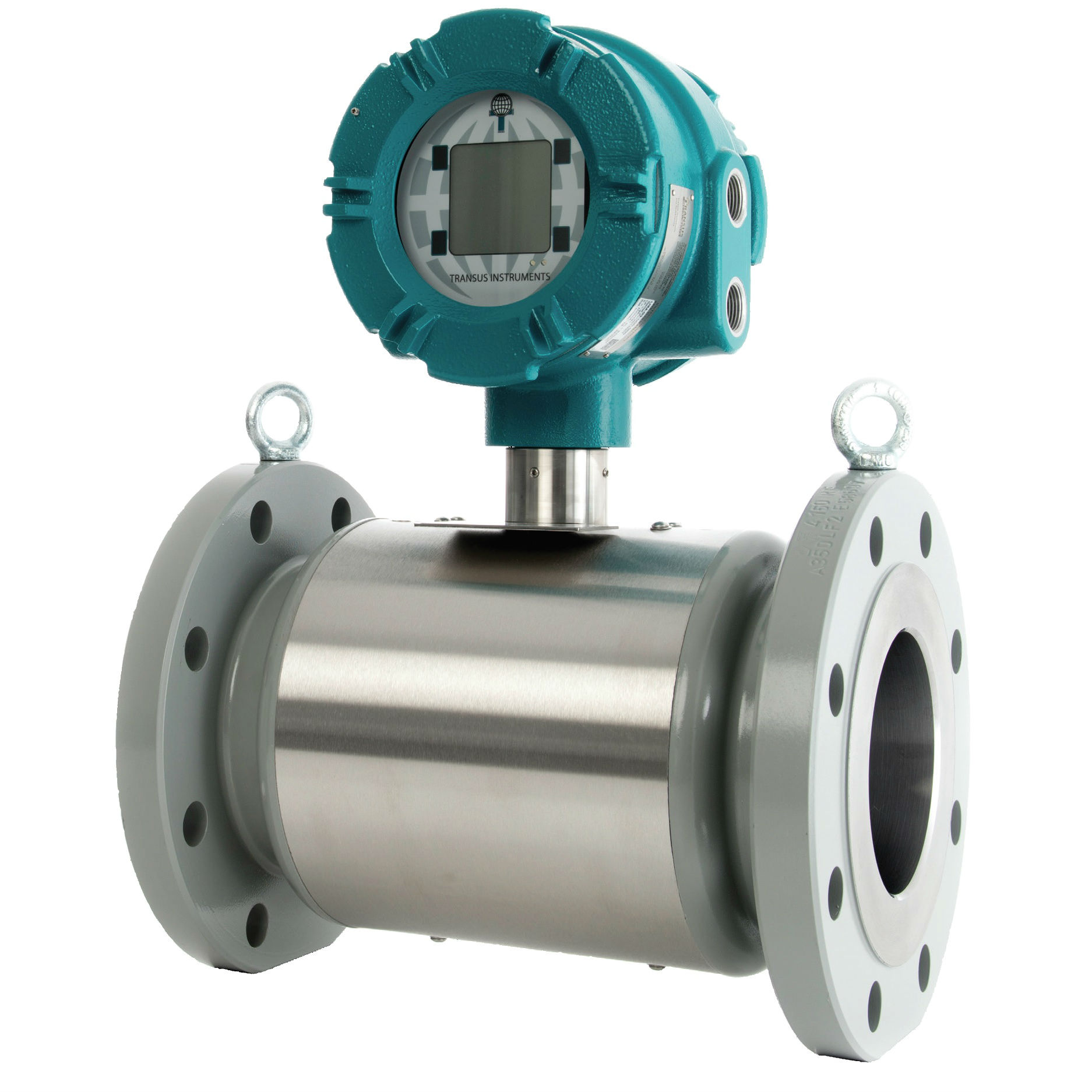

Transus Ultrasonic Gas UIM-3/3F Series Flow Meter

The new UIM-3 ultrasonic flowmeters use the patented Broadband Continuous Wave© signal process and high efficiency titanium transducers to provide reliable and precise flow measurement even in the most extreme applications.

Typical Applications

• Allocation metering
• Shale gas
• Flare gas
• Coal seam gas
• Biogas
• Landfill gas
• Process gas

Features & Benefits

• 2″ to 16″ Line Sizes
• Class 150, 300, and 600
• Pressure ranges up to 10,204 kPa (1,480 psi)
• -30 to 80°C (-22 to 176°F) Process Temperature
• Typical Uncertainty 1% factory calibration, 0.5% flow calibration
• 0.1% Repeatability
• Turndown Ratio 100:1 (pipe size dependent)
• User interface 128×128 dot matrix LC Display, 4 keys
• MODBUS (RS485 and USB) Communication Protocols
