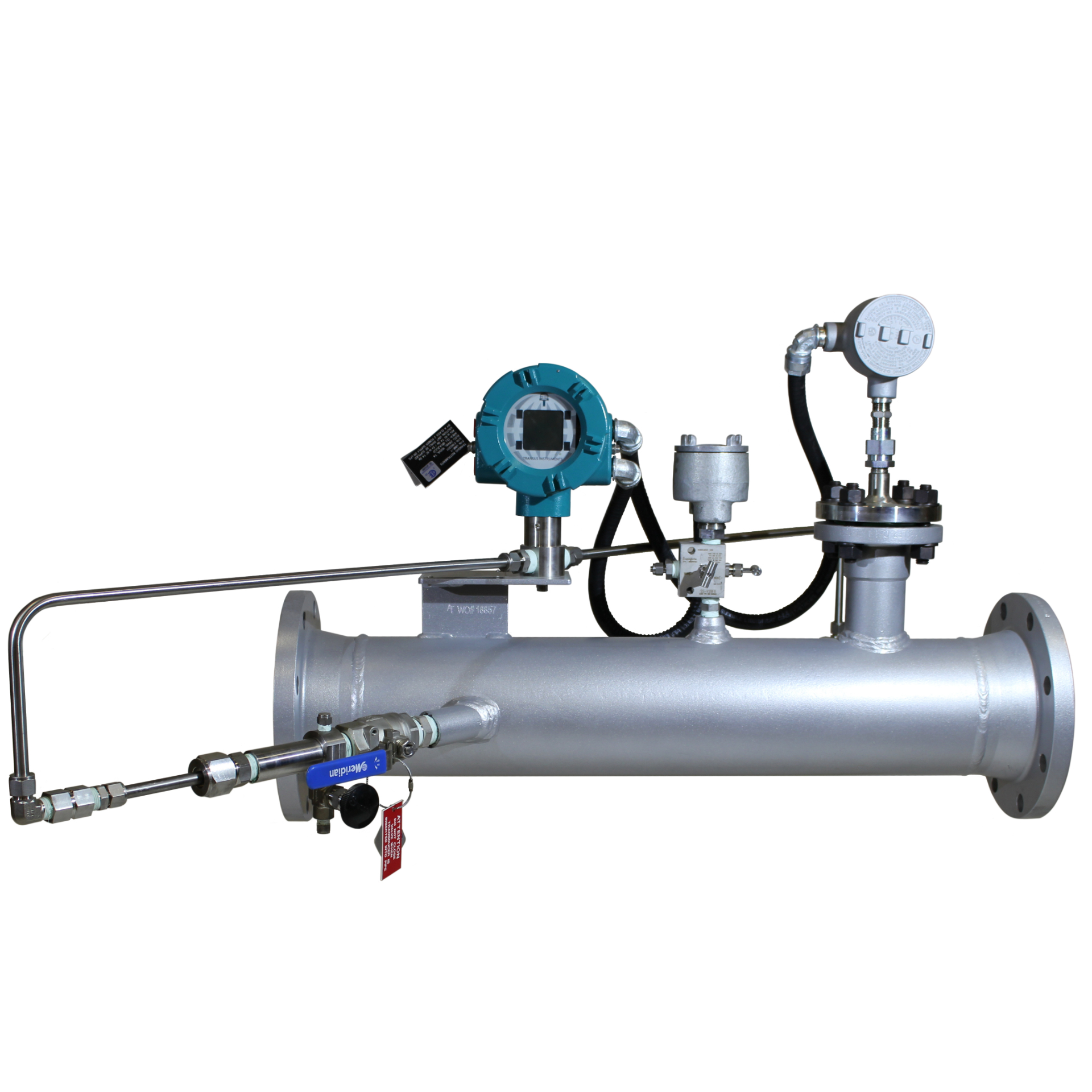

LPGX1 Gas PSignature Series Ultrasonic Flowmeter

LPGX1 series flowmeters are able to deliver accurate velocity and volumetric flow measurements over a large range of flow rates and in unsteady conditions. LPGX series flowmeters are designed for use in flare gas, vent gas, bio gas, fuel gas, and process gas applications and are suitable for use with varying gas composition. Flowcell sizes varying from 1 – 96 inches are available for ASME CLASS 150 – 600. Typical velocity reading accuracy is ±2.0% from 0.3m/s to 65m/s and ±3.0% from 0.1m/s to 3m/s, with ±0.2% repeatability of reading. Accuracy of +/-1.0% with Calibration . PROCON SYSTEMS flowmeters meet all applicable North American codes and standards and can be certified based on the needs of the customer and installation location. PROCON SYSYTEMS has been designing and servicing flowmeters for over 25 years and continues to combine engineering experience with new and proven technologies to provide the best solutions for the customer. All flowmeters come fully assembled and are tested and inspected before shipment.

Features

  • Flowrate: 0.03m/s – 65m/s
  • Flowcell Size: 1-96 inches
  • ASME Rating: CLASS 150-600
  • CSA Class 1, Div.1 or Div.2, Groups A,B,C,D
  • High turndown ratio
  • On-line transducer insertion and removal option
  • Single and dual path options
  • Data logging options
  • Additional certification and testing options
  • Factory trained service technicians and stocked parts to minimize downtime
XGM, Flare, Gas, Flow, GE, GE Sensing, GE Panametrics, Panametrics, GE Infrastructure, gf868, GF, gf, Transus
Product Downloads

List of Brochures

Categories: , , , , ,

Description

LPGX1 series flowmeters are able to deliver accurate velocity and volumetric flow measurements over a large range of flow rates and in unsteady conditions. LPGX series flowmeters are designed for use in flare gas, vent gas, bio gas, fuel gas, and process gas applications and are suitable for use with varying gas composition. Flowcell sizes varying from 1 – 96 inches are available for ASME CLASS 150 – 600. Typical velocity reading accuracy is ±2.0% from 0.3m/s to 65m/s and ±3.0% from 0.1m/s to 3m/s, with ±0.2% repeatability of reading, with improved accuracy of +/-1.0% with Calibration . PROCON SYSTEMS flowmeters meet all applicable North American codes and standards and can be certified based on the needs of the customer and installation location. PROCON SYSYTEMS has been designing and servicing flowmeters for over 25 years and continues to combine engineering experience with new and proven technologies to provide the best solutions for the customer. All flowmeters come fully assembled and are tested and inspected before shipment.

Features

  • Flowrate: 0.03m/s – 65m/s
  • Flowcell Size: 1-96 inches
  • ASME Rating: CLASS 150-600
  • CSA Class 1, Div.1 or Div.2, Groups A,B,C,D
  • High turndown ratio
  • On-line transducer insertion and removal option
  • Single and dual path options
  • Data logging options
  • Additional certification and testing options
  • Factory trained service technicians and stocked parts to minimize downtime
