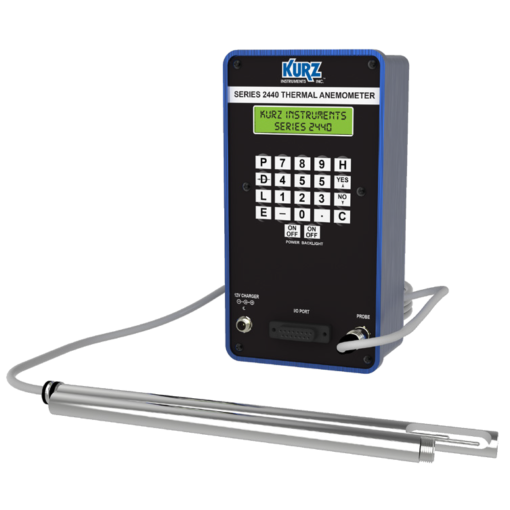

Kurz 2444 Heavy Industrial Portable Flow Meter

The Model 2444 is a rugged, industrial quality portable air velocity meter for a wide variety of velocity measurement applications in pipes and ducts. It uses the well- respected Kurz FD Fast-Dual MetalClad sensor and can be used at temperatures to 200°C. It is extraordinarily flexible as it can be extended in the field to accommodate both large and small ducts. The Model 2444 sensor support consists of the sensor section which has the FD all-welded Alloy C-276 sensor, and one or more 16″ long, 3/4″ diameter tube sections that can be screwed together to obtain a total length of 64.5″ using three sensor support extension sections. The temperature rating is MT (-40°C to +200°C). The Model 2444 represents the state-of-the-art in Portable Air Velocity Instrumentation for industrial applications.

Features & Benefits

  • Easy-to-use menu for display and set-up with HELP screens
  • Two-line 16 character, back0lit LCD with twenty button keypad
  • User selected scrolling display
  • 24-hour clock/calendar (4 digit year display)
  • Two optically isolated loop-powered 4-20mA outputs. User selected for velocity, flow rate or temperature (optional)
  • 1500 Point Data Memory for recording traverses and other measurements
  • Multi-Point calibration correction factors for Flow and Temperature
  • User-entered METER-ID number
  • User-entered flow area
  • User selected Reference Conditions (STP)
  • User selected low Velocity cut-off
  • User selected RS-232C or RS-485 serial port for terminal operation (optional)
  • Fastest response to temperature and velocity changes available
  • Electronics operating temperature range of -25C to 65C , non-condensing
  • Low velocity sensitivity
  • 0.25% repeatability
  • High accuracy over wide velocity and temperature range
Kurz, Kurtz, Gas, Air, Thermal, Themal Mass, Flow

Description

The Model 2444 is a rugged, industrial quality portable air velocity meter for a wide variety of velocity measurement applications in pipes and ducts. It uses the well- respected Kurz FD Fast-Dual MetalClad sensor and can be used at temperatures to 200°C. It is extraordinarily flexible as it can be extended in the field to accommodate both large and small ducts. The Model 2444 sensor support consists of the sensor section which has the FD all-welded Alloy C-276 sensor, and one or more 16″ long, 3/4″ diameter tube sections that can be screwed together to obtain a total length of 64.5″ using three sensor support extension sections. The temperature rating is MT (-40°C to +200°C). The Model 2444 represents the state-of-the-art in Portable Air Velocity Instrumentation for industrial applications.
